MRCOOL DIY Easy Pro 12K 12,000 BTU 19.5 SEER2 Ductless Mini Split Heat Pump 115V
MRCOOL DIY Easy Pro 12K 12,000 BTU 19.5 SEER2 Ductless Mini Split Heat Pump 115V
Couldn't load pickup availability

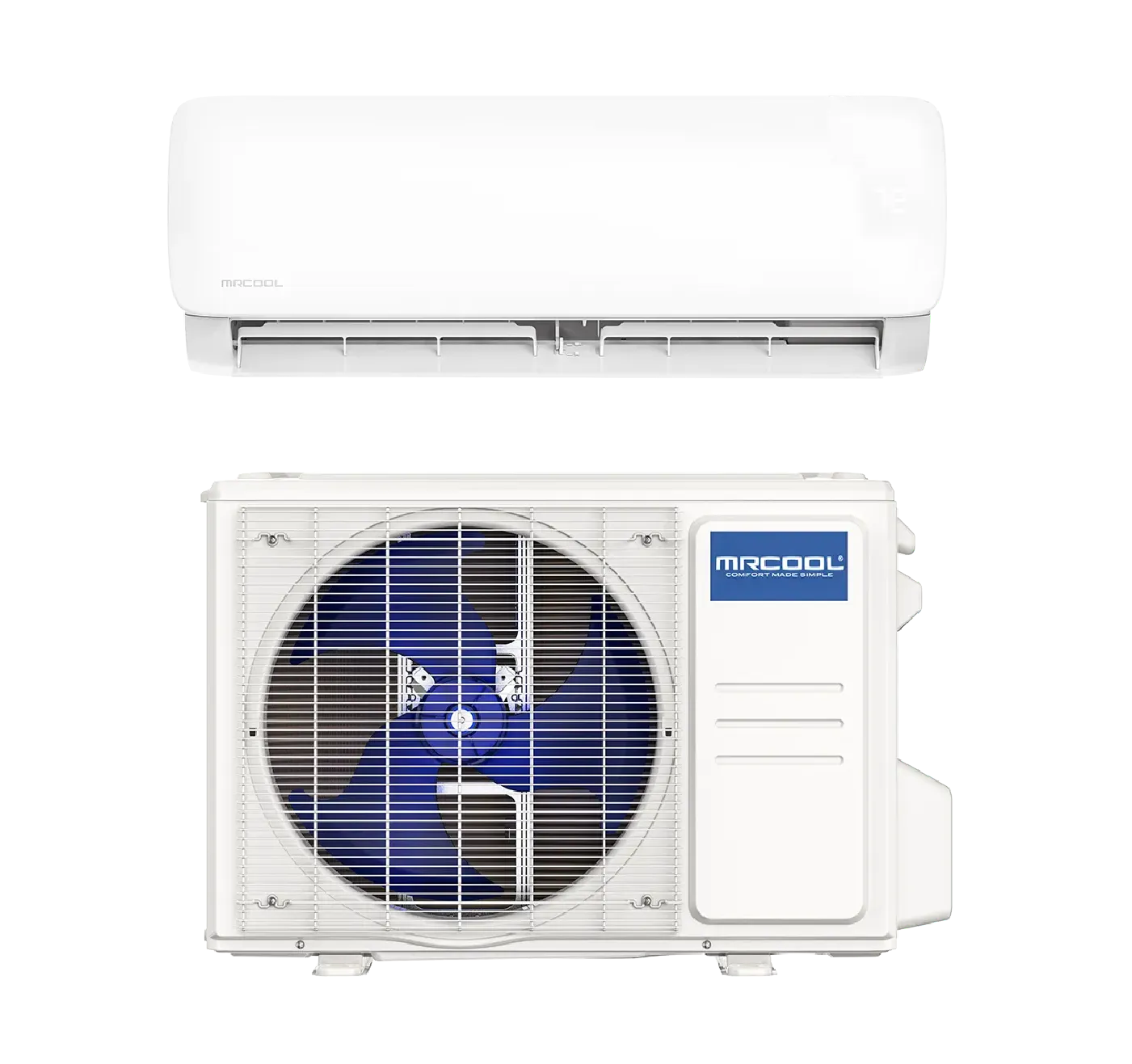

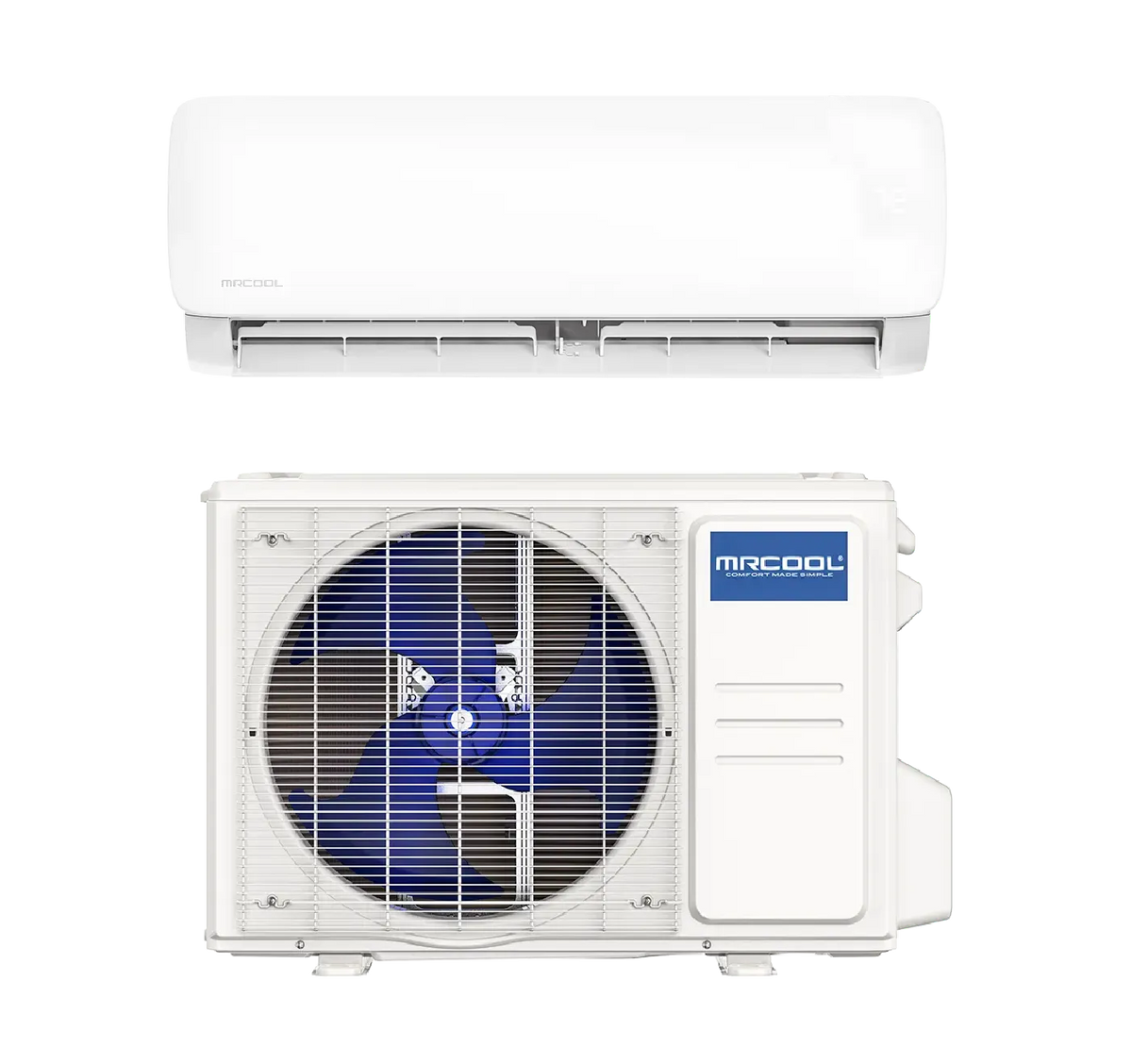

The MRCOOL DIY Easy Pro 12K BTU ductless mini-split heat pump system heats and cools spaces up to 550 square feet. It includes an 11.5-foot pre-charged line set with Fast Connection fittings for straightforward installation.
The Follow Me feature targets temperature to your location, while the anti-mildew function promotes cleaner air. Rinseable air filters and an LED display with troubleshooting codes simplify maintenance. Control via the SmartHVAC app, remote, Amazon Alexa, or Google Assistant, backed by a 5-year compressor and 3-year parts warranty.

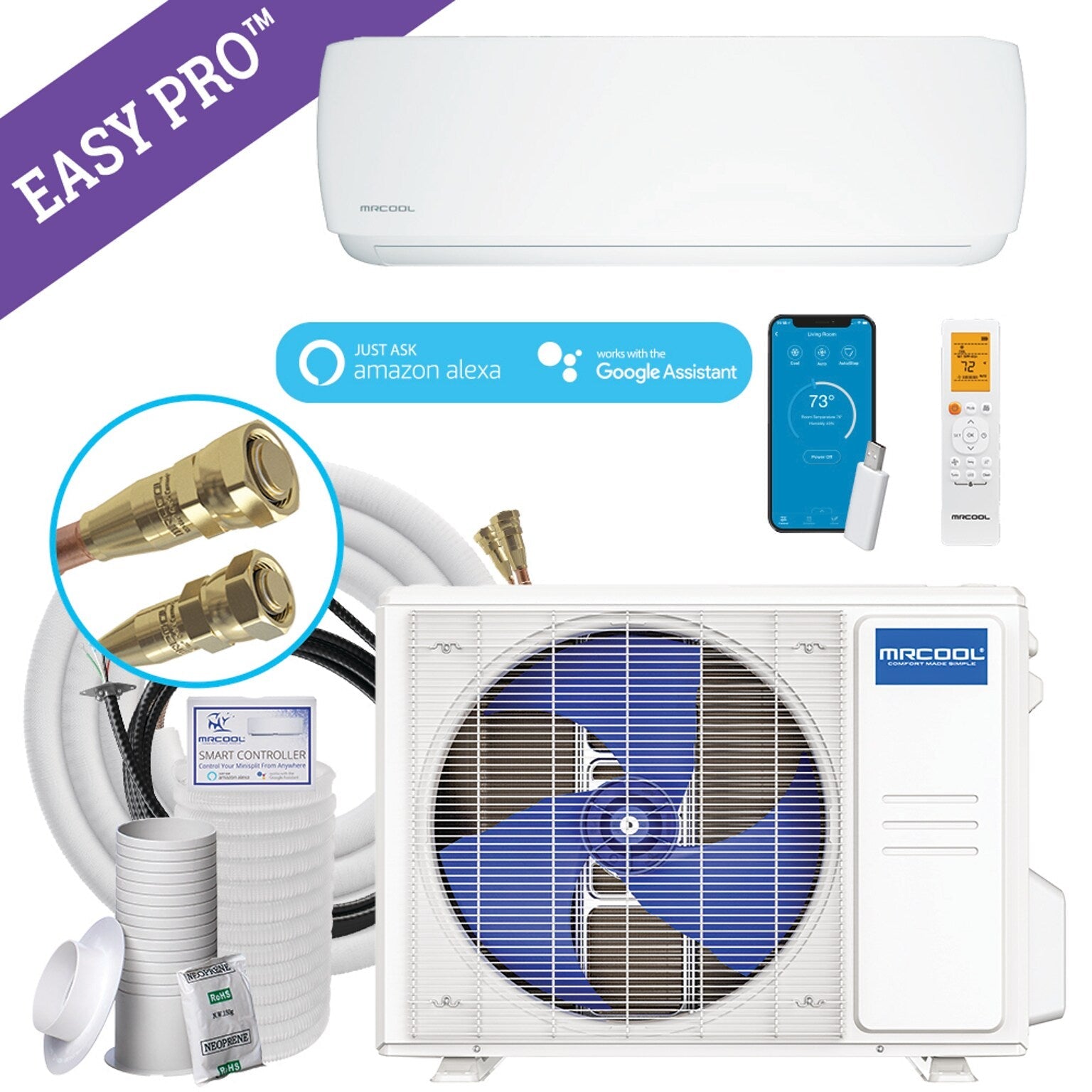

WHAT'S INCLUDED?

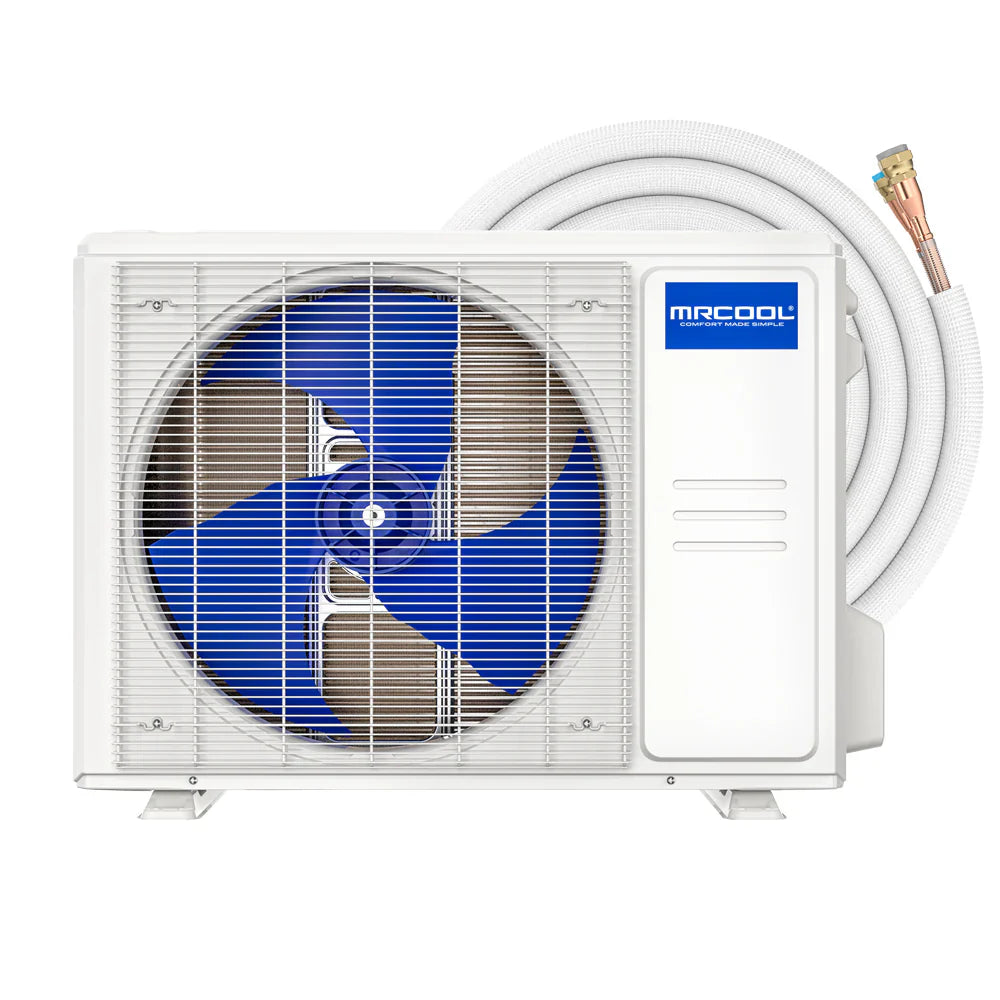

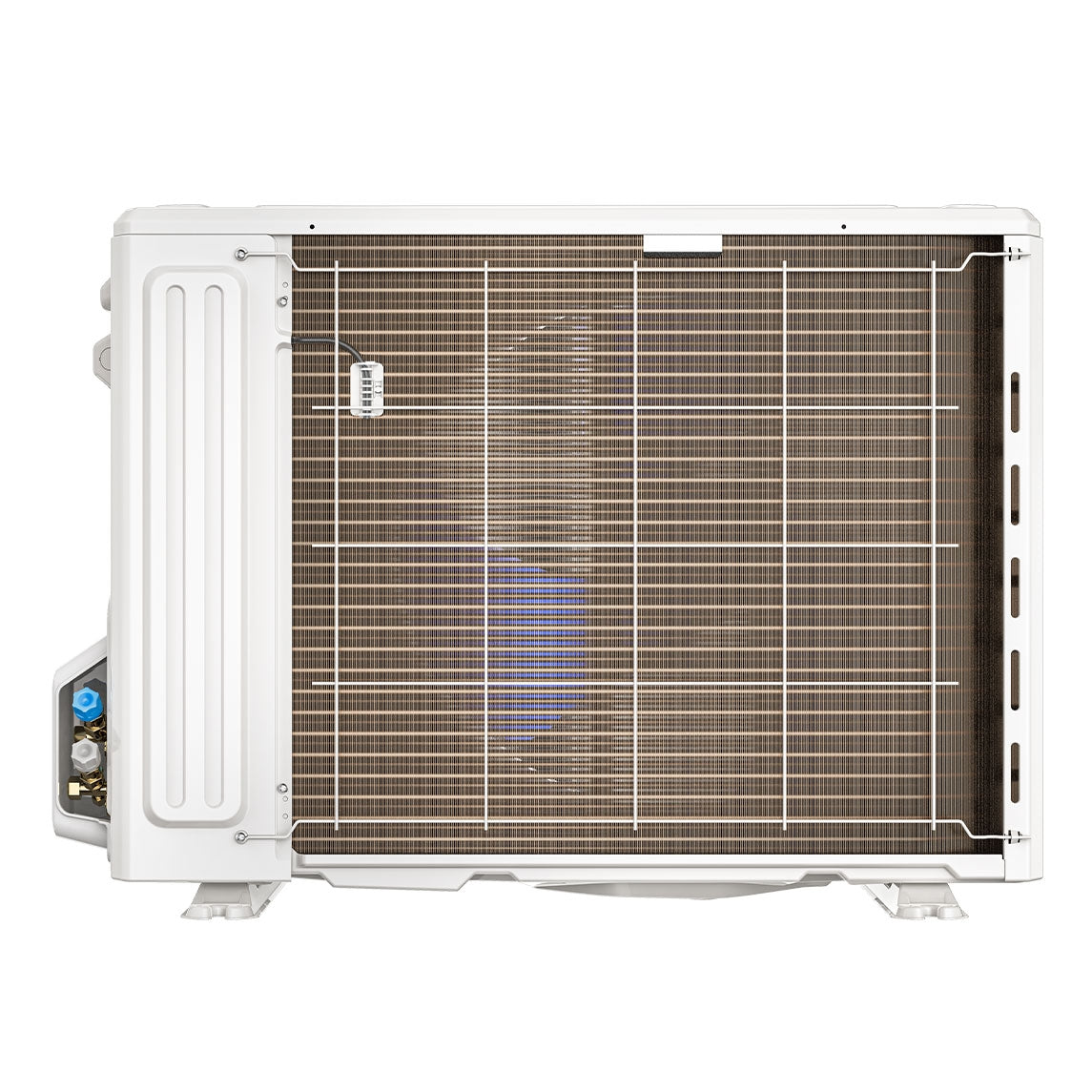

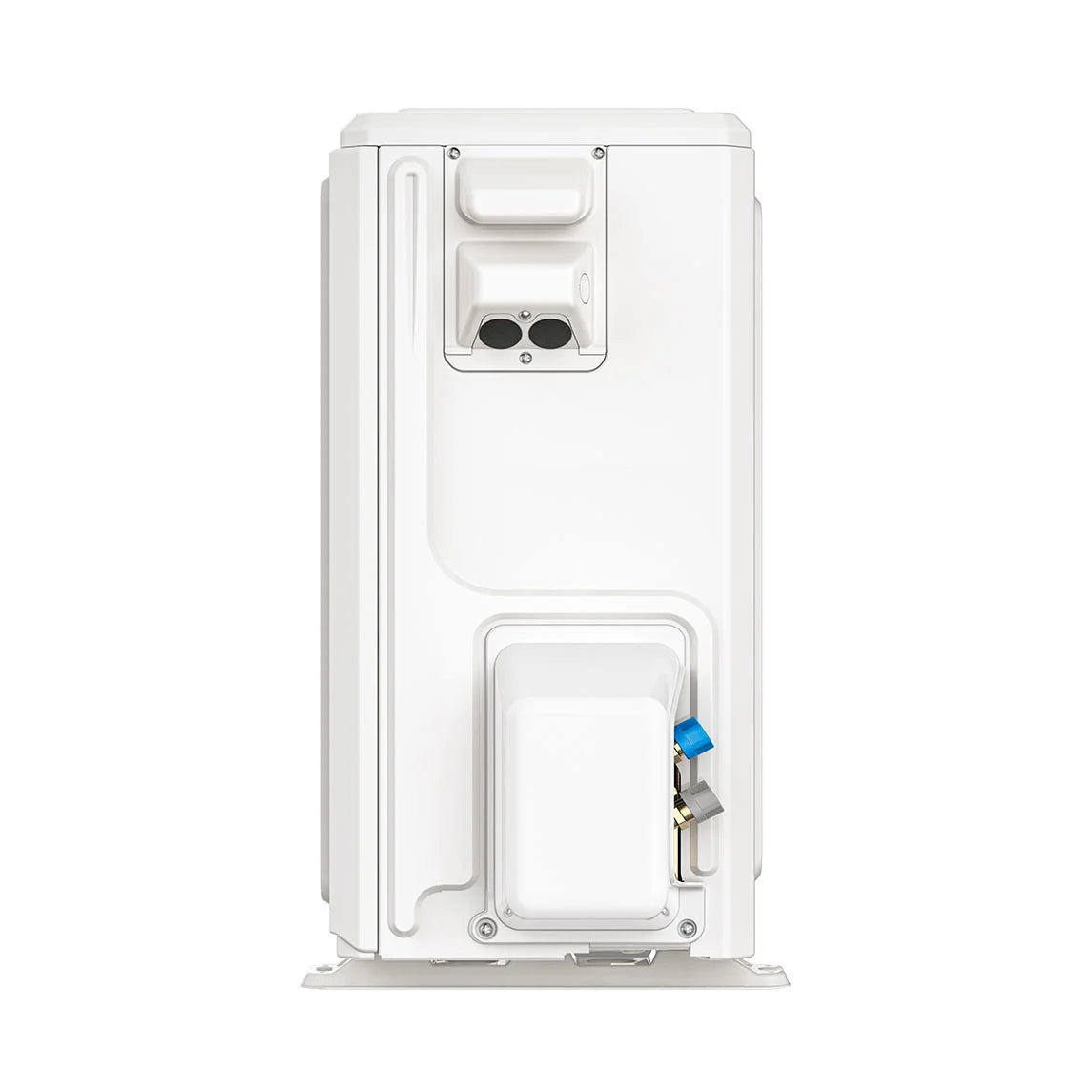

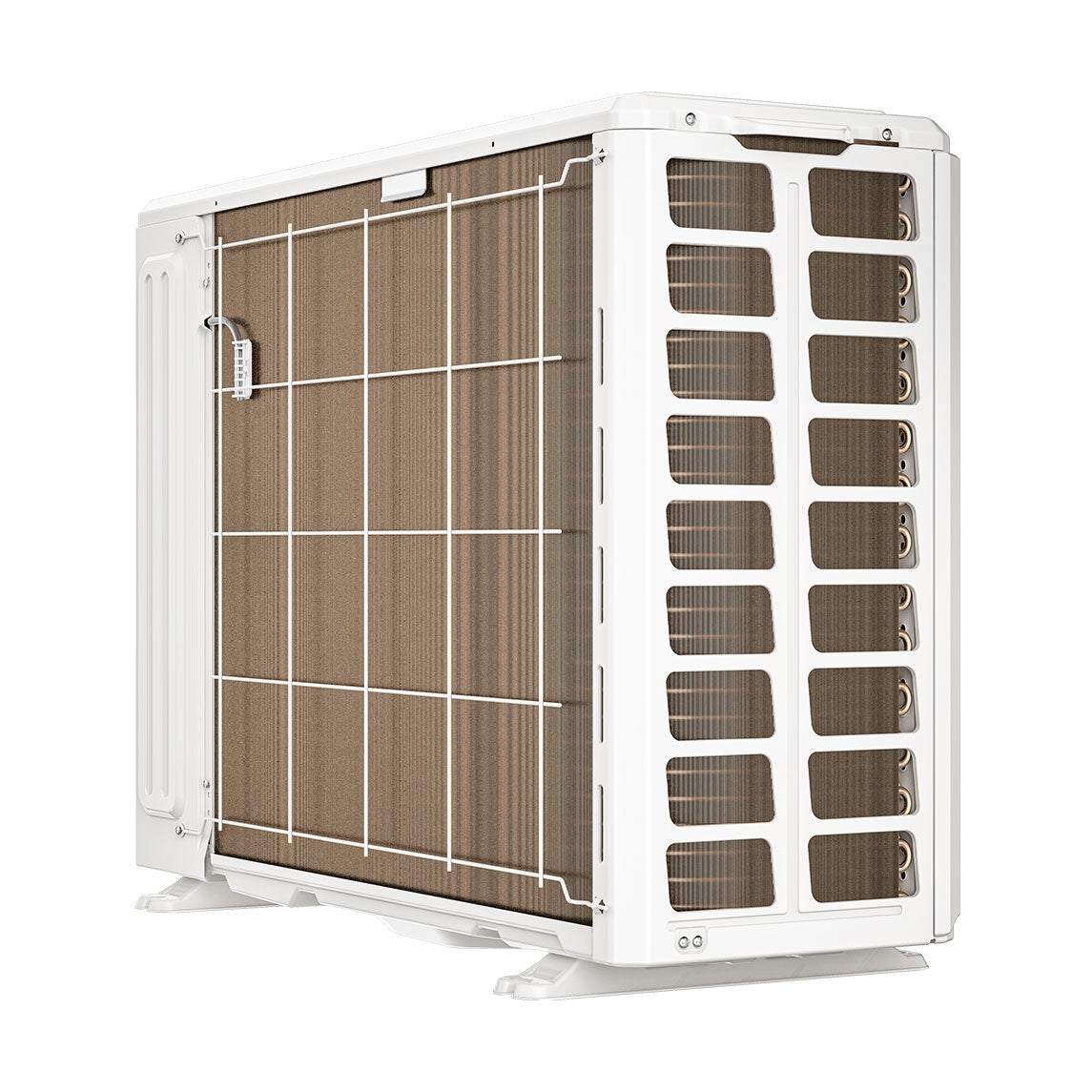

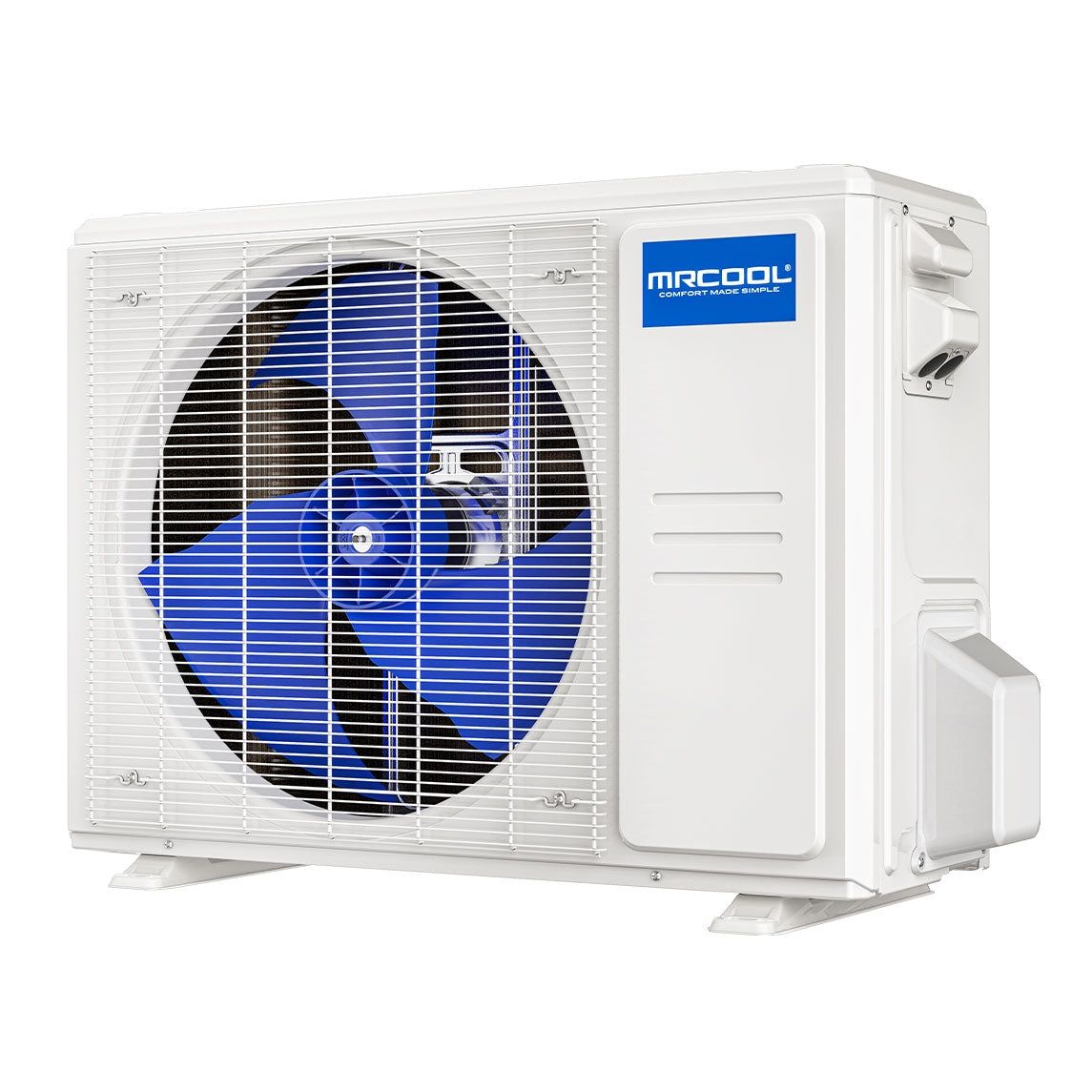

1 x MRCOOL DIY 12K Easy Pro Condenser - EZPRO-12-HP-C-11511DE-O

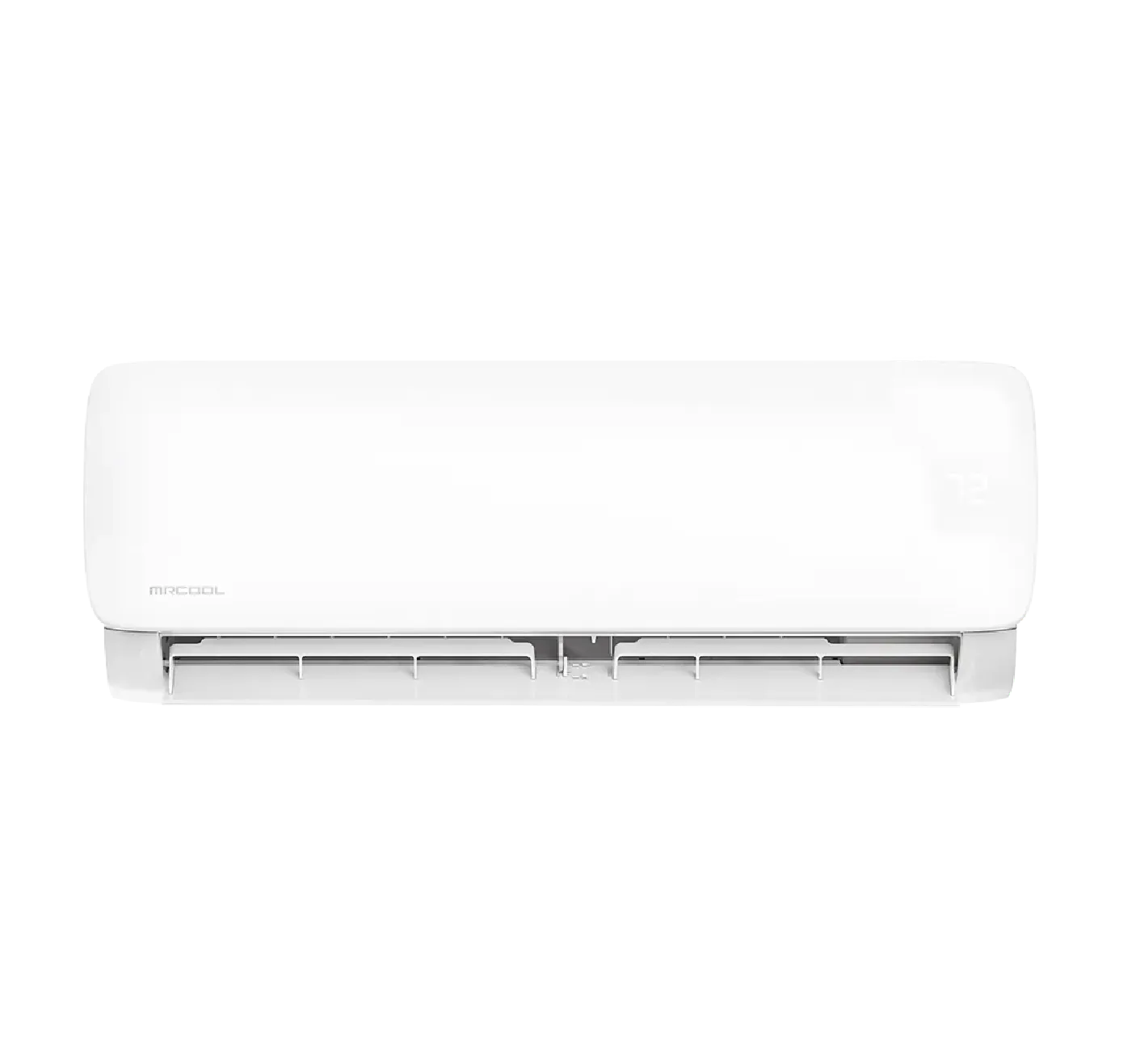

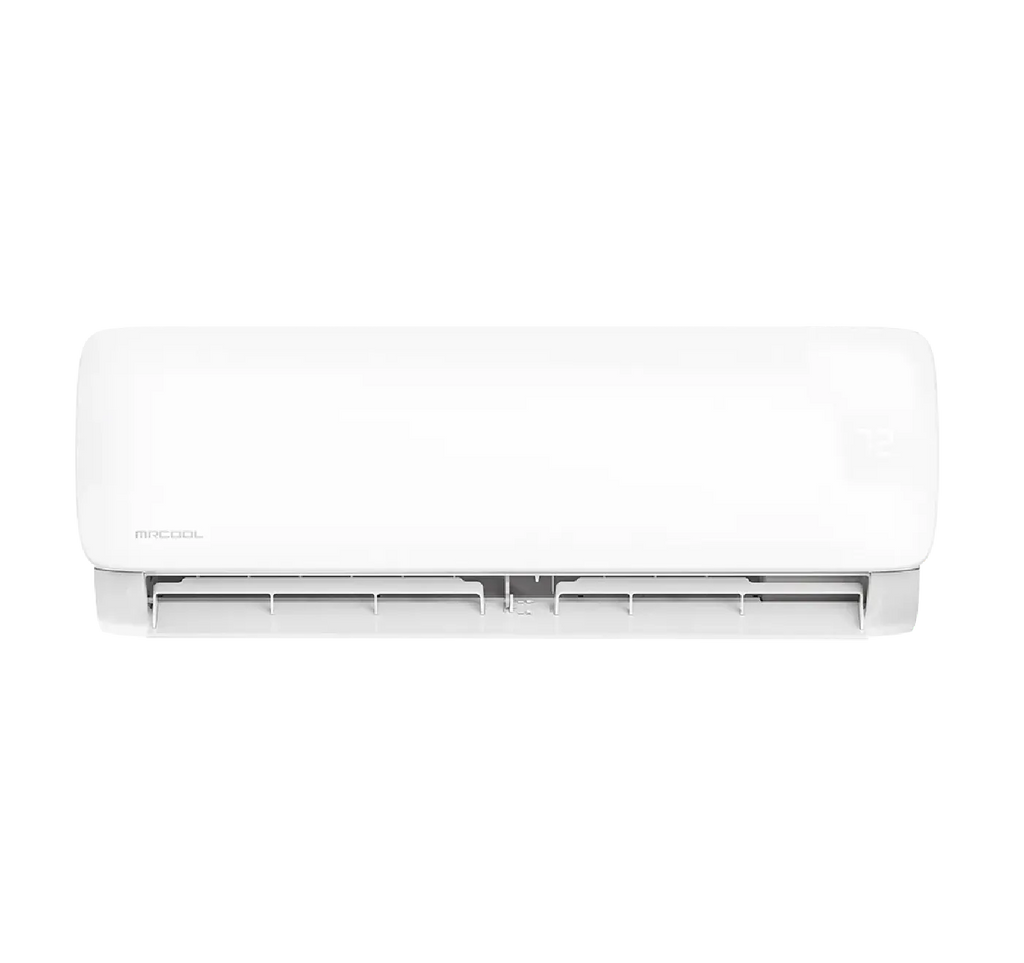

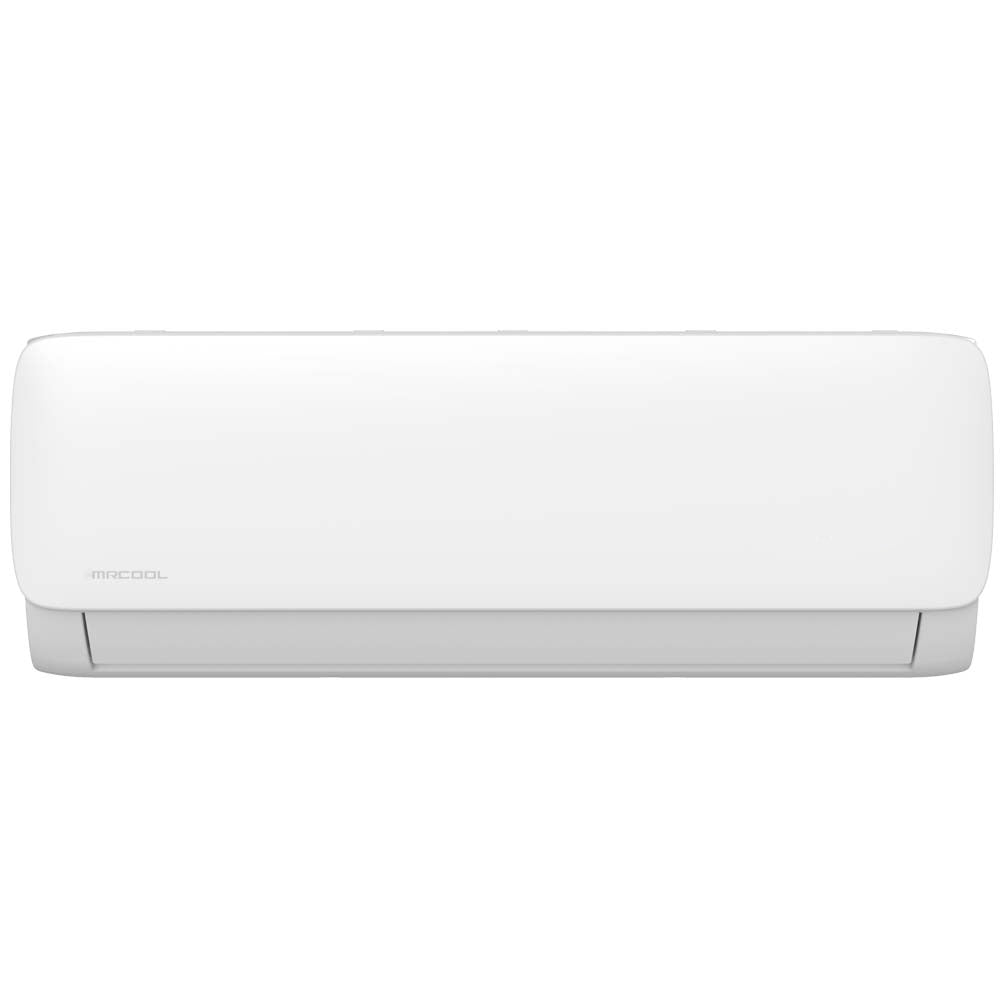

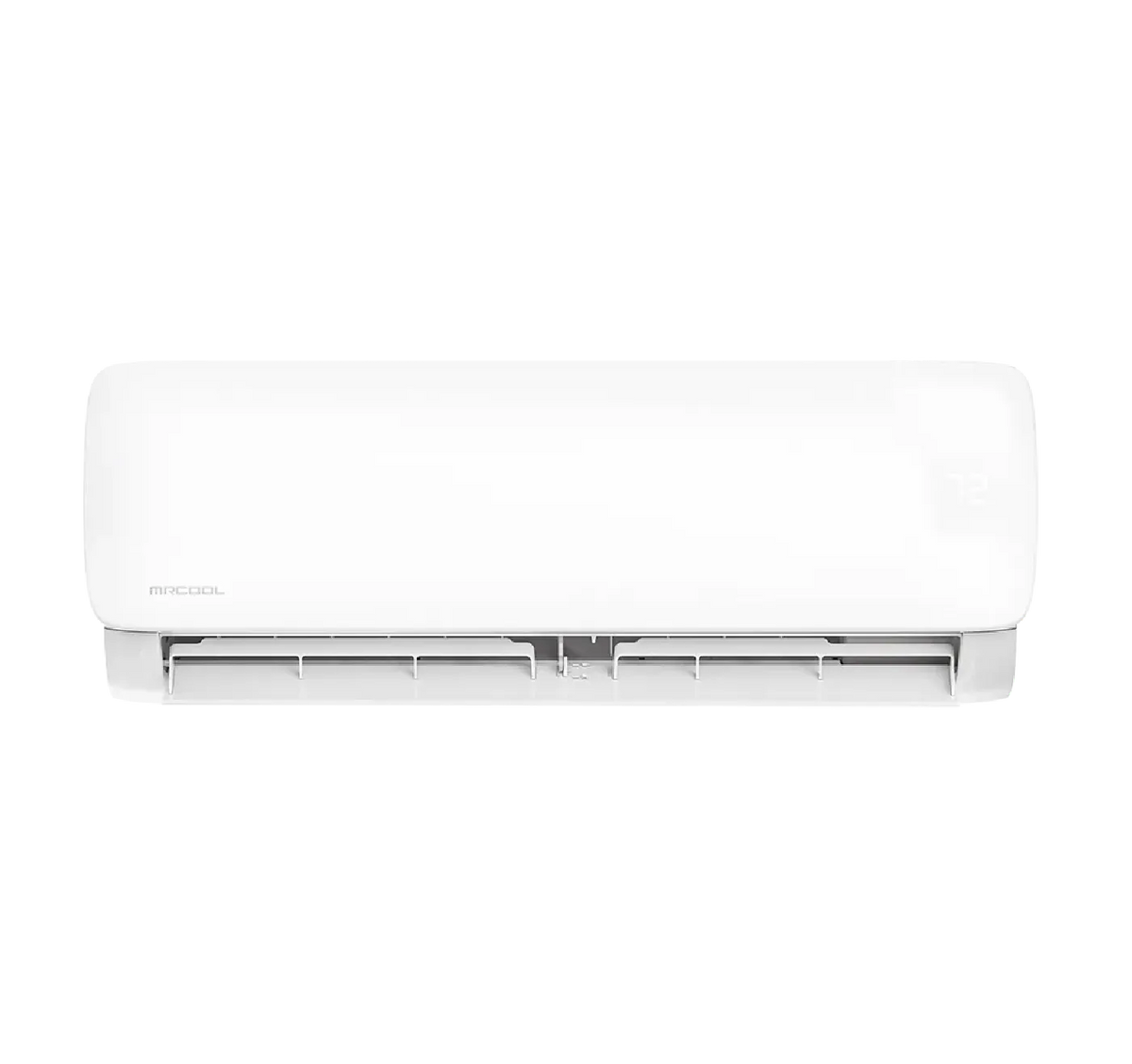

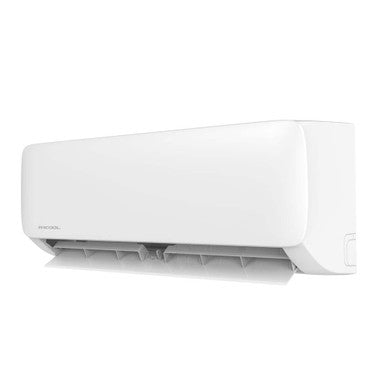

1 x MRCOOL DIY 12K Easy Pro Air Handler - EZPRO-12-HP-WMAH-115DE-O

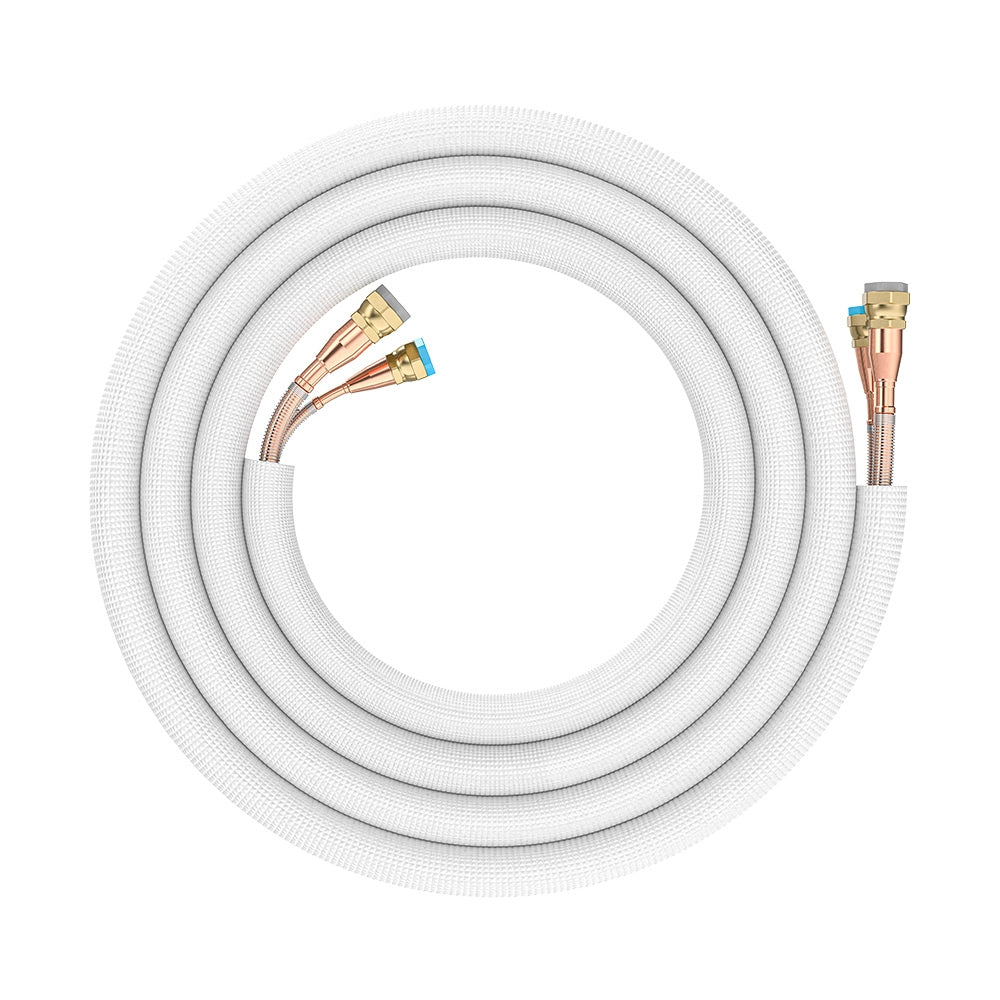

1 x 11.5 ft. 1/4 x 3/8 Line Set (In Box Already)
1 x MRCOOL Remote Control
| BRAND NAME | MRCOOL |
| SERIES | DIY EasyPro |
| MODEL | EZPRO-12-HP-C-11511DE-O |
| GTIN | 840255595971 |
| UPC | 840255595971 |
| SHORT DESCRIPTION |
DIY Easy Pro® - R454B DIY 12K BTU Ductless Mini-Split Heat Pump Condenser, 115V, with 11.5 ft Install Kit
|
| SEER2 | 19.5 |
| EER2 | 9 |
| HSPF2-4 | 9.3 |
| HSPF2-5 | 7 |
| TONNAGE | 1 |
| COOLING CAPACITY (BTU) | 12000 |
| HEATING CAPACITY (BTU) | 12000 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 19.5 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 21.52 |
| DECIBEL RATING (DBA) | 54 |
| INVERTER | Yes |
| LINESET INCLUDED | Yes |
| LINE SET LENGTH | 11.5 ft. |
| MAX LINESET LENGTH (FT) | 75 ft. |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR TYPE | DC |
| CONDENSER FAN MOTOR RPM | 800/700/600 |
| METERING DEVICE | EEV |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | No |
| AHRI CERTIFIED | Yes |
| BASE WARRANTY |
3 Year Parts, 5 Year Compressor
|
| BASE PARTS WARRANTY | 3 Year Parts |
| BASE COMPRESSOR WARRANTY | 5 Year Compressor |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 10.63 |
| NET HEIGHT (IN) | 19.49 |
| NET WIDTH (IN) | 28.35 |
| NET WEIGHT (LBS) | 54.89 |
| GROSS DEPTH (IN) | 10.63 |
| GROSS HEIGHT (IN) | 21.26 |
| GROSS WIDTH (IN) | 32.87 |
| GROSS WEIGHT (LBS) | 67.24 |
Air Handler Specs:
| BRAND NAME | MRCOOL |
| SERIES | DIY EasyPro |
| MODEL |
EZPRO-12-HP-WMAH-115DE-O
|
| GTIN | 840255595469 |
| UPC | 840255595469 |
| SHORT DESCRIPTION |
DIY Easy Pro® - R454B DIY 12K BTU Ductless Mini-Split Heat Pump Wall Mounted Air Handler, 115V, with 13' Communication Cable
|
| TONNAGE | 1 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| COLOR | White |
| MAX COVERAGE AREA | 550 sq. ft. |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING LOW (DBA) | 17.5 |
| DECIBEL RATING HIGH (DBA) | 44.5 |
| OSCILLATION | Yes |
| BLOWER MOTOR TYPE | DC |
| BLOWER MOTOR RPM | 850/750/450 |
| FILTER TYPE | Reusable |
| ADJUSTABLE THERMOSTAT | Yes |
| FAN ONLY OPTION | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| BASE WARRANTY | 3 Year Parts |
| BASE PARTS WARRANTY | 3 Year Parts |
| BASE REMOTE WARRANTY | 3 Year |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 7.87 |
| NET HEIGHT (IN) | 11.61 |
| NET WIDTH (IN) | 31.57 |
| NET WEIGHT (LBS) | 24.91 |
| GROSS DEPTH (IN) | 17.95 |
| GROSS HEIGHT (IN) | 14.17 |
| GROSS WIDTH (IN) | 36.02 |
| GROSS WEIGHT (LBS) | 35.71 |
- BTU Rating: 12,000 BTU
- SEER2 Rating: 19.5 SEER2
- Voltage: 115V
- Coverage Area: 550 sq ft
- Line Set Length: 11.5 ft (pre-charged)
- Type: Ductless Mini Split Heat Pump
- Compressor Warranty: 5 Years
- Parts Warranty: 3 Years
- Smart Control: SmartHVAC app, remote, Alexa, Google Assistant
- Features: Follow Me, Anti-Mildew, LED troubleshooting display
